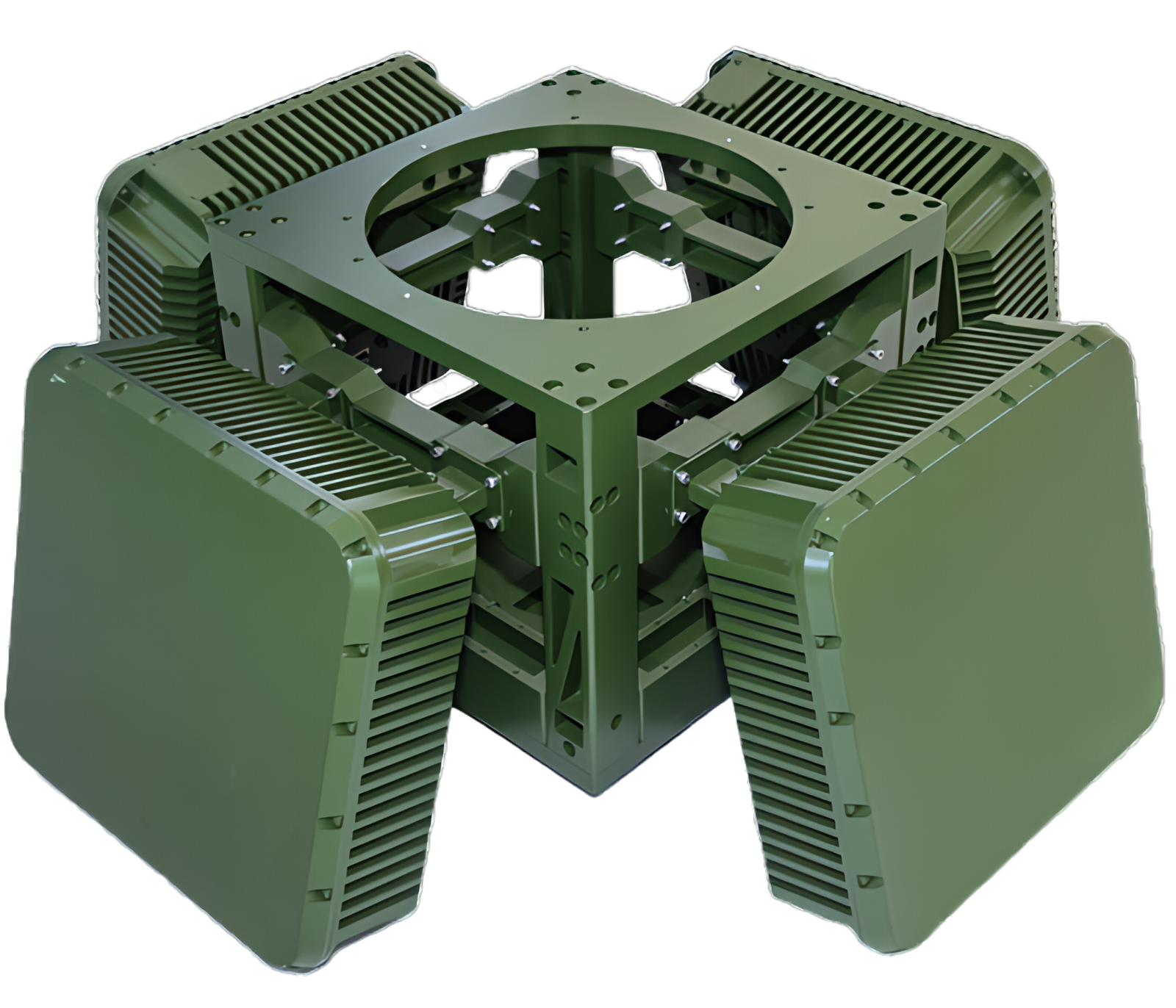

Understanding the ZCSY-554 Radar
The ZCSY-554 radar is an innovative tool designed for modern low-altitude defense and urban monitoring. It offers advanced features, lightweight portability, and high precision, making it a go-to choice for challenging surveillance tasks. Built to handle complex environments, this radar system ensures reliable performance no matter the scenario.
Main Features of the ZCSY-554 Radar
Advanced Pulse Doppler Technology: Equipped with a pulse Doppler three-coordinate system, the ZCSY-554 radar efficiently tracks distance, direction, and height. This is perfect for urban settings and battlefield use where precision is essential.
Fast Phase Scanning: With its two-dimensional phase scanning system, the radar ensures quick and accurate detection of targets, providing real-time responses to threats.
Multiple Radar Bands: The radar supports Ka-band, X-band, and Ku-band configurations, offering flexibility to adapt to various operational needs.
Technical Overview
Each model of the ZCSY-554 radar is tailored for specific applications. Here’s a quick summary of their specifications:
ZCSY-554A
- Radar Band: Ka
- Detection Distance: At least 2km for typical targets like drones
- Coverage: Azimuth: ±45°, Elevation: 0°–30°
- Accuracy: Distance: ≤8m; Azimuth/Elevation: ≤0.3°
- Target Capacity: Tracks over 500 targets
- Weight: ≤15kg
- Power Use: ≤500W
ZCSY-554B
- Radar Band: X
- Detection Distance: At least 3km
- Coverage: Azimuth: ±45°, Elevation: 0°–50°
- Weight: ≤12kg
- Power Use: ≤400W
ZCSY-554C
- Radar Band: X
- Detection Distance: At least 6km
- Coverage: Azimuth: ±45°, Elevation: 0°–50°
- Weight: ≤25kg
- Power Use: ≤600W
ZCSY-554C-Ku
- Radar Band: Ku
- Detection Distance: At least 5km
- Weight: ≤22kg
- Power Use: ≤600W
ZCSY-554D
- Radar Band: Ku
- Detection Distance: At least 8km
- Weight: ≤40kg
- Power Use: ≤1500W
High-Quality Design
The ZCSY-554 radar is built using lightweight composite materials, making it easy to handle and transport. Its advanced electronics are designed to withstand harsh conditions, ensuring reliable use over time. The system’s durability and efficiency make it a long-term investment for serious users.
Benefits of the ZCSY-554 Radar
Easy to Carry: Weighing as little as 12kg, this radar is perfect for urban and remote operations. Its compact size makes setup fast and easy.
Low Power Requirements: With power consumption as low as 400W, it’s energy-efficient and suitable for operations in areas with limited resources.
Adaptable Installation: The radar can be fixed, mounted on vehicles, used on aircraft, or deployed as a portable unit, making it versatile for different applications.
Accurate Detection: Its fine azimuth and elevation precision of 0.3° ensure dependable tracking.
Wide Coverage: A full 360° azimuth range and up to 50° elevation scanning provide thorough monitoring capabilities.
How to Set Up and Use
Installing the Radar:
- Select the mounting type—fixed, vehicle-mounted, or portable—based on your needs.
- Align the radar correctly using its built-in tools.
- Connect to a compatible power source.
- Calibrate the system for accurate performance.
Operating Tips:
- Check for physical damage or misalignment regularly.
- Keep the firmware updated to access improved features.
- Monitor power use during extended operations.
Addressing Common Challenges
The ZCSY-554 radar is designed to tackle some of the most pressing issues in surveillance:
Detecting Drones in Urban Areas: Its pulse Doppler technology excels in identifying targets even in cluttered environments.
Battlefield Situational Awareness: Lightweight and portable, this radar ensures military personnel have the critical information they need.
Energy Efficiency: Low power consumption keeps the radar running longer in field conditions.
Accurate Tracking: With pinpoint precision, the radar ensures reliable threat detection.
Why It’s the Right Choice
- Versatility: Effective for both urban monitoring and battlefield use.
- Advanced Features: Combines cutting-edge scanning and frequency modulation technology.
- Lightweight Design: Portable and convenient for diverse settings.
- Comprehensive Coverage: Full 360° scanning eliminates blind spots.
- Built to Last: High-quality materials ensure reliability in all environments.
Final Thoughts
The ZCSY-554 radar sets a new standard in surveillance technology. It’s the perfect choice for anyone needing precision, efficiency, and portability. Whether for defense or monitoring urban areas, this radar delivers reliable results every time. Contact us today to learn more about how the ZCSY-554 radar can meet your needs!
