Detailed Introduction to ZCSY-553 Radar
In today’s world, low-altitude threats are growing increasingly complex. From small drones to potential surveillance devices, the need for reliable and efficient radar systems has never been greater. The ZCSY-553 radar series is a groundbreaking solution designed to provide unparalleled performance in low-altitude defense. With state-of-the-art materials and manufacturing techniques, this radar series offers exceptional features and benefits, making it an essential tool for modern security needs.
Features and Highlights of the ZCSY-553 Radar Series
The ZCSY-553 radar series consists of various models, each designed to address specific operational requirements while maintaining superior performance standards. These models include the ZCSY-553B, ZCSY-553B-Ku, ZCSY-553D, ZCSY-553E, and ZCSY-553F. Below, we will explore their unique features and the technology that sets them apart.
Advanced Radar Bands
The ZCSY-553 series operates on X-band and Ku-band frequencies, providing high-resolution detection capabilities. These radar bands are ideal for low-altitude surveillance, as they offer excellent target detection and tracking, even in challenging environments.
DBF Technology
The series employs Digital Beamforming (DBF) technology, which ensures precise and accurate target identification. This cutting-edge system enhances detection accuracy, enabling the radar to differentiate between various objects, including drones, birds, and other airborne threats.
Wide Scanning Coverage
The ZCSY-553 radar series features an azimuth machine scanning combined with pitch phase scanning capabilities. This ensures a full 360° azimuth coverage and a pitch range of 0° to 30°, making it suitable for both fixed and dynamic targets in low-altitude airspace.
Impressive Detection Range
One of the standout features of the ZCSY-553 series is its detection range. For instance:
- ZCSY-553B and ZCSY-553B-Ku: Detect typical targets, such as the DJI Phantom 4 drone, at distances of 5 km.
- ZCSY-553D: Extends the detection range to 10 km.
- ZCSY-553E: Covers up to 12 km.
- ZCSY-553F: Provides an impressive range of 15 km.
These extended ranges make the radar ideal for securing large areas against low-altitude threats.
High Target Capacity
Each model in the series can track 500 or more targets simultaneously. This capability ensures reliable monitoring of multiple low-altitude threats, providing comprehensive situational awareness.
Compact and Lightweight Design
The ZCSY-553 radar series is designed for portability and flexibility:
- The ZCSY-553B weighs ≤60 kg and measures 1000 × 380 × 600 mm.
- The ZCSY-553F, despite its extended range, weighs ≤100 kg and measures 1140 × 400 × 900 mm.
This compact design makes the radar series easy to install and adaptable to various deployment scenarios, including fixed installations and vehicle-mounted setups.
Low Power Consumption
Efficiency is key in operational environments. The radar series boasts power consumption levels as low as 800W, with the ZCSY-553E and ZCSY-553F consuming slightly more due to their extended ranges (≤1500W and ≤2000W, respectively).
Installation and Usage Guidance
Installing and operating the ZCSY-553 radar series is straightforward, thanks to its versatile design and intuitive interface. Here’s what you need to know:
Installation Options
The radar can be deployed in two primary ways:
- Fixed installation: Ideal for permanent surveillance points, such as border security or critical infrastructure.

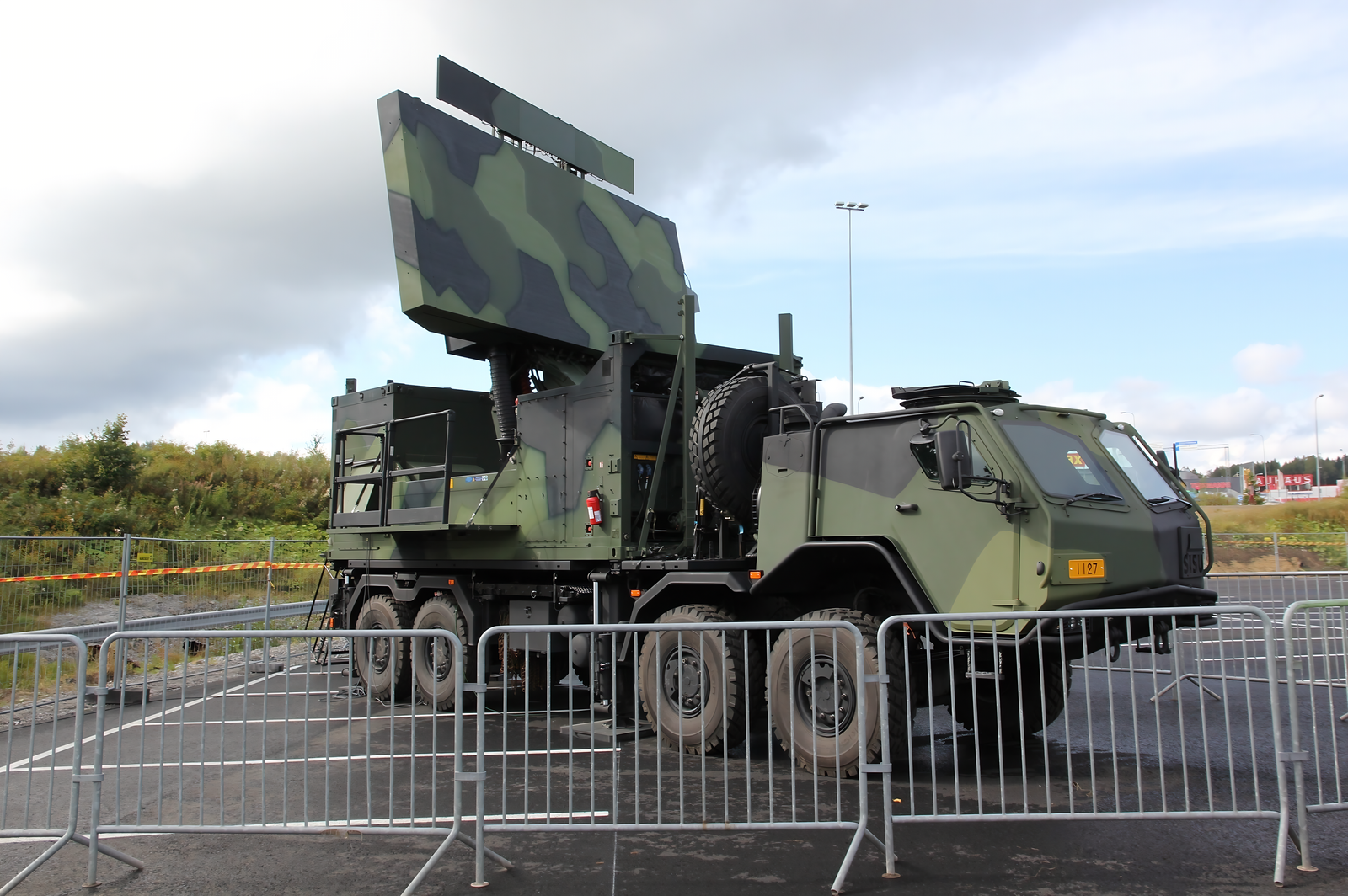

- Vehicle-mounted installation: Perfect for mobile units that require rapid deployment in dynamic environments.
Key Considerations During Installation
- Placement: Ensure the radar is installed in an elevated position to maximize its coverage and detection capabilities.
- Power Supply: Verify that the power source meets the radar’s requirements, ranging from 800W to 2000W, depending on the model.
- Environmental Factors: The radar is designed to perform in various conditions but should be protected from extreme physical damage during setup.
Operational Insights
- Warm-Up Time: Allow the radar to initialize for optimal performance.
- Calibration: Perform regular calibration to ensure detection accuracy remains high.
- Maintenance: Clean external components periodically and inspect for any wear or damage.
Problems Solved by the ZCSY-553 Radar
The ZCSY-553 radar series addresses several critical challenges faced by security and defense operators:
Effective Drone Detection
Drones are increasingly used for illicit purposes, such as surveillance, smuggling, or unauthorized data collection. The ZCSY-553 radar provides reliable detection of small, low-altitude targets, such as the DJI Phantom 4, at distances up to 15 km.
Enhanced Situational Awareness
With the ability to track 500+ targets simultaneously, operators can maintain comprehensive awareness of their surroundings, reducing the risk of missed threats.
Adaptability in Various Environments
Whether deployed in urban, rural, or remote locations, the radar’s advanced scanning capabilities ensure effective performance. Its lightweight and compact design make it suitable for both permanent and mobile deployments.
Cost-Effective Solution
The radar’s low power consumption and durable build reduce operational costs while ensuring long-term reliability.
Advantages in Materials and Manufacturing Processes
The ZCSY-553 radar series is crafted with precision and durability in mind. Key advantages include:
Advanced Materials
The radar utilizes lightweight yet robust materials to ensure portability without compromising strength. Components are designed to withstand harsh environmental conditions, including extreme temperatures and humidity.
High-Precision Manufacturing
Each unit undergoes meticulous manufacturing processes, ensuring consistency and quality. The use of advanced technologies minimizes defects and maximizes operational efficiency.
Rigorous Testing Standards
Before deployment, each radar is subjected to rigorous testing to validate its performance across various scenarios. This ensures reliability in real-world applications.
Customer Benefits
Investing in the ZCSY-553 radar series offers numerous benefits:
- Peace of Mind: Reliable low-altitude defense against modern threats.
- Scalable Solutions: A range of models to meet diverse operational needs.
- User-Friendly Design: Simplified installation and operation processes.
- Cost Efficiency: Low power consumption and durable build for long-term savings.
Conclusion
The ZCSY-553 radar series represents a leap forward in low-altitude defense technology. With advanced features, impressive detection ranges, and a focus on reliability, it is the ultimate solution for modern security challenges. Whether you need a fixed installation or a mobile unit, this radar series provides unmatched performance and adaptability.
Explore the ZCSY-553 radar series today and take the first step towards securing your low-altitude airspace. For inquiries, installation guidance, or technical support, feel free to reach out to our team.
RFQ: Common Questions and Answers
What is the detection range of the ZCSY-553 radar? The detection range varies by model, from 5 km (ZCSY-553B) to 15 km (ZCSY-553F), depending on the target size and environmental conditions.
Can the radar be mounted on a vehicle? Yes, all models in the ZCSY-553 series support both fixed and vehicle-mounted installations.
What power supply is required? Power consumption ranges from 800W to 2000W, depending on the specific model.
How many targets can the radar track simultaneously? Each model can track 500 or more targets at the same time.
What maintenance does the radar require? Regular calibration, periodic cleaning, and inspection for wear or damage will ensure optimal performance.
What environments are suitable for the radar? The ZCSY-553 radar is designed to perform reliably in urban, rural, and remote locations, withstanding various environmental challenges.
