Introduction: The Ultimate Convergence in Electromagnetic Warfare
Throughout military history, the most decisive advantages have come not from perfecting individual weapons but from combining different capabilities into unified systems. The Roman legion dominated not through superior swords or shields alone, but by integrating infantry, engineering, and logistics into an unstoppable combined force. Today, the TYZF-308 represents this same principle applied to electromagnetic warfare against drones – the convergence of detection, jamming, and spoofing into a single, autonomous platform.
Until now, we’ve explored these technologies as a progression: detection systems as the eyes, jammers as the fists, spoofers as the voice of deception, and basic integration combining two of these. Each advancement brought new capabilities, but also new complexity. Operators needed to coordinate multiple systems, each with its own interfaces, maintenance requirements, and operational limitations. It was like conducting an orchestra where the musicians spoke different languages.

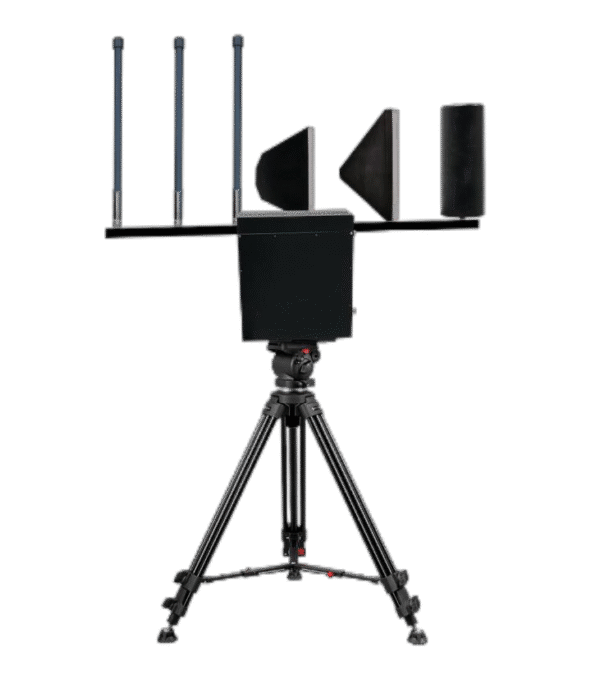

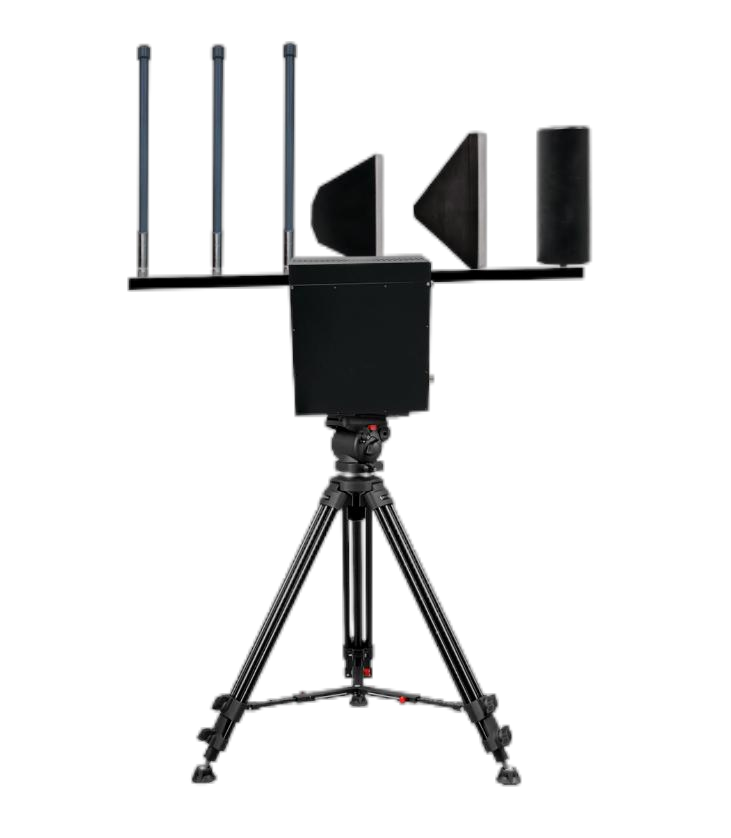

The TYZF-308 changes this paradigm entirely. By integrating passive detection, active jamming, AND navigation spoofing into one platform, it creates something genuinely new – a system that can see, strike, and deceive simultaneously. This isn’t merely adding spoofing to the previous detection-jamming combination; it’s a fundamental reimagining of how these technologies interact, creating synergies impossible when they operate separately.
Consider the tactical implications: A drone approaches your facility. Traditional systems would detect it, then decide whether to jam or spoof, losing precious seconds. The TYZF-308 can detect at 10 kilometers, begin subtle spoofing to redirect it, and hold jamming in reserve if the drone resists – all decided and executed in milliseconds by artificial intelligence that understands the interplay between these capabilities better than any human operator could.
Technical Specifications: Engineering the Ultimate Defense Platform
The TYZF-308’s specifications reveal extraordinary ambition – combining every major counter-drone technology into a platform that exceeds the sum of its parts. Let’s examine how this integration creates unprecedented capabilities.
The Triad of Capabilities: Detection, Jamming, and Spoofing
| Capability | Specification | Technology | Synergy with Others |
|---|---|---|---|
| Detection | 300MHz-6000MHz passive | Wideband RF sensing | Identifies optimal jamming/spoofing frequencies |
| Range | ≥10km | High-sensitivity receivers | Early warning enables graduated response |
| Jamming | 300MHz-6000MHz active | Frequency-agile transmitters | Detection feedback optimizes power/frequency |
| Range | ≥3km | Directive power control | Sufficient for multiple engagement attempts |
| Spoofing | GPS/GLONASS/BeiDou/Galileo | Precise signal generation | Detection tracks effectiveness in real-time |
| Range | ≥3km | Matched to jamming range | Seamless transition between techniques |
| Antennas | Omnidirectional + Directional | Hybrid architecture | Detection guides directional responses |
This specification matrix reveals the philosophical breakthrough: each capability enhances the others, creating multiplicative rather than additive improvements.
Understanding Ultra-Wideband Integration Challenges
Covering 300MHz to 6000MHz – a 20:1 frequency ratio – in a single system pushes electromagnetic engineering to its limits. To understand this challenge, consider that wavelengths vary from 1 meter at 300MHz to 5 centimeters at 6000MHz. Traditional antenna design suggests you’d need dozens of different elements to cover this range effectively.
The TYZF-308 solves this through revolutionary approaches:
| Frequency Band | Wavelength | Traditional Solution | Integrated Innovation |
|---|---|---|---|
| 300-500 MHz | 60-100cm | Separate VHF antenna | Fractal geometry with active loading |
| 500-1000 MHz | 30-60cm | Dedicated UHF array | Shared aperture with frequency-selective surfaces |
| 1-2 GHz | 15-30cm | L-band dish or array | Metamaterial structures for broadband operation |
| 2-6 GHz | 5-15cm | Multiple microwave horns | Software-defined aperture synthesis |
The Power of Three: Operational Synergies
The true innovation lies not in simply packaging three systems together, but in how they interact:
Detection Enhances Jamming and Spoofing:
- Identifies exact frequencies in use
- Measures signal strength for optimal response power
- Tracks frequency hopping patterns
- Monitors effectiveness in real-time
Jamming Enhances Detection and Spoofing:
- Brief interrogation pulses verify threats
- Forces drones to increase power, improving detection
- Creates windows for spoofing insertion
- Provides immediate backup if spoofing fails
Spoofing Enhances Detection and Jamming:
- Subtle position shifts reveal drone behavior
- Reduces required jamming power
- Extends effective range through deception
- Provides intelligence on drone navigation systems
This happens faster than human cognition, with AI making decisions based on:
- Threat library matching
- Behavioral analysis
- Environmental factors
- Historical effectiveness
- Collateral risk assessment
Applications: Revolutionary Deployment Scenarios
The convergence of all counter-drone technologies in one platform enables deployments previously impossible or impractical. Let’s explore how this ultimate integration transforms security operations.
National Border Comprehensive Protection
Consider securing a 1000-kilometer border against drug smuggling drones, surveillance intrusions, and potential attack vectors. Traditional approaches would require:
- Detection radar network: $50 million
- Jamming system array: $30 million
- Spoofing capabilities: $20 million
- Integration infrastructure: $25 million
- Operations centers: $15 million
- Annual personnel: $20 million
- Total: $140 million + $20 million/year
The TYZF-308 alternative transforms this equation:
- 100 integrated units: $30 million
- Solar/communications: $5 million
- Central monitoring: $2 million
- Annual operations: $3 million
- Total: $37 million + $3 million/year
Beyond cost savings, the integrated approach provides:
- Consistent coverage without gaps
- Autonomous operation in remote areas
- Graduated response preserving intelligence value
- Minimal environmental/civilian impact
- Scalable deployment as threats evolve
Smart Airport Layered Defense
Airports represent the most complex counter-drone challenge, requiring:
- Zero interference with aircraft systems
- Rapid response to fast-moving threats
- Discrimination between threats and authorized drones
- Integration with existing security infrastructure
- Regulatory compliance across multiple domains
The TYZF-308’s trinity approach creates layered defense:
Outer Perimeter (10km): Passive detection identifies all aerial activity
- No emissions to interfere with aircraft
- Early warning enables prepared response
- Pattern analysis identifies suspicious behavior
- Database matching for known threats
Middle Zone (3-10km): Intelligent spoofing begins
- Gentle redirection away from approach paths
- No impact on aircraft GPS systems
- Drones unaware of manipulation
- Preserves option for intelligence gathering
Inner Defense (0-3km): Full spectrum response
- Immediate jamming for direct threats
- Aggressive spoofing for forced landing
- Directional antennas minimize collateral impact
- Automatic coordination with air traffic control
Urban Critical Infrastructure Mesh
Dense urban environments demand surgical precision. A city’s financial district might contain:
- Stock exchanges where microseconds matter
- Hospitals requiring clean electromagnetic environment
- Government buildings needing absolute security
- Commercial offices demanding connectivity
- Residential areas expecting privacy
The TYZF-308 enables unprecedented urban deployment:
Adaptive Power Management: AI adjusts response intensity based on:
- Time of day (business hours vs. night)
- Surrounding infrastructure sensitivity
- Detected threat severity
- Potential collateral impact
Selective Frequency Usage: System chooses optimal response:
- GPS spoofing near hospitals (minimal impact)
- WiFi jamming in commercial zones (acceptable disruption)
- Full spectrum only for verified threats
- Constant environmental monitoring
Mesh Intelligence: Multiple units create smart network:
- Shared threat tracking across districts
- Coordinated response preventing gaps
- Predictive positioning based on patterns
- Load balancing during swarm attacks
Radar Characteristics: The Ultimate Sensor-Effector Fusion
The technical achievement of combining ultra-wideband detection with precision jamming and sophisticated spoofing requires fundamental innovations in electromagnetic engineering.
Antenna System Architecture
The hybrid omnidirectional/directional antenna specification reveals sophisticated design enabling multiple operational modes:
| Mode | Antenna Configuration | Use Case | Advantage |
|---|---|---|---|
| Wide Area Surveillance | Omnidirectional detection | Normal operations | 360° persistent awareness |
| Focused Interdiction | Directional jamming | Specific threat engagement | Maximum power on target |
| Precision Spoofing | Omnidirectional GPS | Area navigation denial | Consistent coverage |
| Hybrid Operations | Both simultaneously | Complex scenarios | Flexible response |
Revolutionary Antenna Technologies:
- Metamaterial Apertures: Engineered structures with properties not found in nature
- Negative index materials for extreme miniaturization
- Frequency-selective surfaces for band isolation
- Active metamaterials for dynamic pattern control
- Cloaking structures hiding antenna presence
- Software-Defined Apertures: Arrays where software controls electromagnetic properties
- Digital beamforming across entire frequency range
- Simultaneous multiple beam generation
- Null steering to protect friendly systems
- Polarization agility for optimal matching
- Cognitive Antenna Systems: AI-controlled adaptive structures
- Real-time pattern optimization
- Frequency-dependent beam shaping
- Interference minimization algorithms
- Learning from engagement effectiveness
Signal Processing Revolution
Handling three distinct warfare modes requires unprecedented processing capability:
Each pipeline operates independently yet shares data continuously, enabling responses impossible with separate systems.
Electromagnetic Compatibility Engineering
Combining sensitive receivers with high-power transmitters across a 20:1 frequency range would traditionally create insurmountable interference. The TYZF-308 achieves compatibility through:
Isolation Techniques:
- Physical: Separate antenna elements with optimal spacing
- Temporal: Time-division multiplexing in microsecond slots
- Frequency: Guard bands and sharp filtering
- Spatial: Beam steering to minimize coupling
- Digital: Adaptive cancellation of known interference
Dynamic Range Management:
- Detection: -120 dBm sensitivity
- Jamming: +40 dBm transmission
- Total dynamic range: 160 dB (10^16 power ratio!)
This requires extraordinary engineering to prevent self-interference.
Regulatory Compliance: Navigating the Ultimate Complexity
The convergence of every major counter-drone technology creates unprecedented regulatory challenges. No existing framework contemplates systems that simultaneously detect, jam, AND spoof across such vast frequency ranges.
Multi-Domain Regulatory Overlap
The TYZF-308 falls under multiple, sometimes conflicting, regulatory domains:
| Domain | Relevant Regulations | Compliance Challenge | Mitigation Strategy |
|---|---|---|---|
| Spectrum Management | Receiver and transmitter rules | 300MHz-6000MHz spans dozens of allocations | Frequency-selective operation |
| Aviation Safety | GPS interference prohibitions | Spoofing could affect aircraft | Altitude-based discrimination |
| Communications | Protected services across bands | Potential widespread disruption | Cognitive interference avoidance |
| Electronic Warfare | Military/civilian restrictions | Dual-use technology controls | Clear defensive positioning |
| Artificial Intelligence | Autonomous weapon regulations | AI making attack decisions | Human oversight options |
| Privacy | Signal interception laws | Passive detection implications | Data minimization policies |
International Harmonization Challenges
Different nations regulate these technologies differently:
United States: Extremely restrictive on GPS spoofing
- FCC prohibits intentional GPS interference
- FAA concerns about aviation safety
- DHS recognizes critical infrastructure needs
- Military exemptions don’t apply to civilians
European Union: Complex patchwork of national rules
- Some nations permit defensive jamming
- Others prohibit all active countermeasures
- GDPR impacts detection data handling
- Cross-border coordination required
Asia-Pacific: Varying from permissive to restrictive
- China allows defensive systems with registration
- Japan restricts based on transmission power
- Australia follows US model closely
- Singapore pragmatic about security needs
Solution Strategies:
- Modular certification for each capability
- Geofencing to comply with local rules
- Mode restrictions based on jurisdiction
- International standards development participation
Packaging and Deployment: Engineering the Ultimate Platform
The extraordinary complexity of integrating three warfare systems demands innovative packaging solutions balancing performance, reliability, and maintainability.
Thermal Architecture for Triple Systems
Heat management becomes critical with three high-power systems:
| Subsystem | Heat Generation | Duty Cycle | Cooling Requirement |
|---|---|---|---|
| Detection Electronics | 50W continuous | 100% | Passive heatsinks |
| Jamming Amplifiers | 500W peak | 10-50% | Active liquid cooling |
| Spoofing Transmitters | 100W peak | 20-80% | Hybrid air/liquid |
| Signal Processing | 200W continuous | 100% | Direct chassis coupling |
| Power Supplies | 100W continuous | 100% | Forced air circulation |
Integrated Thermal Solution:
- Liquid cooling loop serves all high-power components
- Heat exchangers sized for worst-case simultaneous operation
- Thermal mass buffers peak loads
- Intelligent power management prevents overheating
- Redundant cooling paths ensure reliability
Modular Architecture Philosophy
Despite integration, maintainability demands modularity:
Replaceable Modules:
- Detection Module: All receiver components
- Jamming Module: Amplifiers and filters
- Spoofing Module: GPS signal generation
- Processing Module: DSP and control
- Power Module: Supplies and distribution
- Antenna Module: Elements and switching
Each module includes:
- Self-diagnostic capabilities
- Hot-swap connectors
- Automatic calibration
- Version compatibility checking
- Graceful degradation support
Installation Scalability
The TYZF-308 adapts to various deployment scales:
Minimal Installation: Single unit for point defense
- Rooftop or tower mounting
- Omnidirectional coverage
- Basic network connection
- Autonomous operation
Networked Deployment: Multiple units for area coverage
- Overlapping detection zones
- Coordinated response strategies
- Centralized command interface
- Distributed intelligence
Integrated Architecture: Part of larger security ecosystem
- Interfaces with existing sensors
- Feeds central decision systems
- Accepts external commands
- Provides sensor data to other systems
User Guide: Orchestrating the Ultimate Defense
Operating a system combining detection, jamming, and spoofing requires new conceptual frameworks. Traditional operator roles blur as AI handles tactical decisions while humans set strategic objectives.
Table 1: Core Technical Specifications of TYZF-308
| Parameter Category | Specification | Technical Significance |
|---|---|---|
| Detection Frequency Range | 300 MHz – 6000 MHz | Encompasses commercial drone control frequencies |
| Jamming Frequency Range | 300 MHz – 6000 MHz | Full-spectrum disruption capability |
| Navigation Bands | GPS L1, BeiDou B1, Galileo E1, GLONASS L1 | Multi-constellation coverage |
| Detection Range | ≥10 km | Extended perimeter monitoring |
| Jamming Range | ≥3 km | Effective neutralization distance |
| Spoofing Range | ≥3 km | Navigation deception envelope |
| Detection Method | Passive RF sensing | Covert operation capability |
| Power Supply | AC 220V | Standard infrastructure integration |
| Operating Temperature | -20°C to +50°C | All-weather operational resilience |
Comparative Performance Metrics
When juxtaposed with conventional radar systems, the TYZF-308 demonstrates superior versatility through its tripartite functionality:
| System Type | Detection Method | Response Capability | Covertness |
|---|---|---|---|
| Traditional Radar | Active emission | Detection only | Low |
| RF Detectors | Passive sensing | Detection only | High |
| TYZF-308 Integrated | Passive sensing | Detection + Disruption + Deception | High |
Applications: Strategic Deployment Scenarios
The multifaceted capabilities of the TYZF-308 enable deployment across diverse operational contexts:
Critical Infrastructure Protection
- Airport Perimeters: Safeguarding approach and departure corridors
- Power Generation Facilities: Preventing reconnaissance and potential attacks
- Government Buildings: Establishing secure aerial zones
- Industrial Complexes: Protecting proprietary operations
Event Security
- Public Gatherings: Temporary deployment for crowd protection
- VIP Protection: Mobile security bubbles
- Sporting Events: Stadium airspace control
Radar Characteristics: Technical Architecture Analysis
Passive Detection Methodology
The system employs sophisticated spectrum analysis algorithms to identify drone control signals without electromagnetic emissions. This passive approach confers several advantages:
- Signal Processing Architecture
- Wide-band spectrum analyzers (300 MHz – 6 GHz)
- Digital signal processing with FFT analysis
- Pattern recognition for drone signature identification
- Machine learning algorithms for threat classification
- Antenna Configuration
- Omnidirectional arrays for 360° coverage
- Directional elements for focused disruption
- Adaptive beamforming capabilities
- Polarization diversity for enhanced detection
Active Countermeasure Systems
The integrated jamming and spoofing capabilities employ distinct technological approaches:
Jamming Technology:
- Broadband noise generation
- Targeted frequency disruption
- Adaptive power control
- Minimal collateral interference
Navigation Deception:
- GNSS signal simulation
- Coordinated multi-constellation spoofing
- Controlled trajectory manipulation
- Safe landing protocols
Regulatory Compliance: Legal Framework Considerations
Table 2: International Regulatory Standards
| Jurisdiction | Relevant Regulations | Compliance Requirements |
|---|---|---|
| United States | FCC Part 15, FAA regulations | Authorized use only, frequency coordination |
| European Union | RED 2014/53/EU, EASA guidelines | CE marking, type approval |
| China | MIIT standards, CAAC regulations | CCC certification, operational permits |
| International | ITU Radio Regulations | Frequency allocation compliance |
Deployment necessitates comprehensive regulatory assessment, including:
- Spectrum licensing requirements
- Environmental impact assessments
- Aviation authority notifications
- Privacy regulation compliance
Packaging and Logistics
The TYZF-308 system architecture facilitates modular deployment:
Standard Configuration
- Control Unit: 19″ rack-mountable chassis (4U)
- Detection Array: Weather-resistant radome (IP67)
- Jamming Antennas: Discrete panel arrays
- Cabling: Military-grade connectors and shielding
Transportation Specifications
- Shock-resistant transit cases
- Climate-controlled storage requirements
- Modular assembly for rapid deployment
- Weight distribution: <200 kg total system
User Guide: Operational Protocols
Initial Setup Procedures
- Site Survey and Planning
- RF environment baseline measurement
- Coverage area mapping
- Interference assessment
- Power infrastructure verification
- System Installation
- Antenna positioning optimization
- Cable routing and grounding
- Control system integration
- Network connectivity establishment
- Calibration and Testing
- Detection threshold adjustment
- False alarm rate optimization
- Response protocol configuration
- Integration with existing security systems
Each phase incorporates automated decision matrices while maintaining human oversight capabilities.
Maintenance Requirements
Preventive Maintenance Schedule
| Interval | Maintenance Tasks | Duration |
|---|---|---|
| Daily | System status verification | 15 minutes |
| Weekly | Performance metrics review | 1 hour |
| Monthly | Antenna inspection and cleaning | 2 hours |
| Quarterly | Calibration verification | 4 hours |
| Annual | Comprehensive system audit | 2 days |
Diagnostic Procedures
- Built-in self-test (BIST) routines
- Remote monitoring capabilities
- Predictive failure analysis
- Component redundancy verification
Radar Application Scenarios: Advanced Implementation Case Studies
Scenario 1: Urban Critical Infrastructure
Context: Metropolitan government complex protection
Implementation Strategy:
- Distributed sensor network across 5 km²
- Integrated with existing CCTV systems
- Automated threat response protocols
- 24/7 monitoring center integration
Performance Metrics:
- Detection rate: 99.7%
- False positive rate: <0.1%
- Response time: <3 seconds
- Operational availability: 99.9%
Scenario 2: Industrial Facility Protection
Context: Chemical processing plant perimeter security
Deployment Configuration:
- Overlapping detection zones
- Selective jamming to prevent collateral effects
- Integration with physical security barriers
- Automated alert escalation
Operational Outcomes:
- 47 successful interceptions (12-month period)
- Zero security breaches
- Minimal operational disruption
- ROI achieved within 18 months
Scenario 3: Temporary Event Security
Context: International summit venue protection
Tactical Deployment:
- Rapid deployment configuration
- Multi-layered detection zones
- Coordinated with law enforcement
- Real-time threat assessment
Results Analysis:
- 100% threat detection rate
- Seamless integration with security protocols
- No service disruptions to authorized systems
- Complete operational success
Conclusions: Future Trajectories in Counter-UAS Technology
The TYZF-308 represents a sophisticated convergence of passive detection and active mitigation technologies, establishing new benchmarks for low-altitude airspace security. As drone technology continues to evolve, counter-UAS systems must maintain technological parity through continuous innovation. Future developments will likely emphasize:
- Enhanced AI-driven threat classification
- Improved selective targeting capabilities
- Greater integration with broader security ecosystems
- Advanced counter-counter-UAS resilience
The imperative for comprehensive airspace security solutions will only intensify as autonomous aerial systems become increasingly prevalent across civilian and commercial applications.
Frequently Asked Questions
1. How does passive detection technology differ from traditional radar systems?
Passive detection analyzes existing RF emissions from drone control links without transmitting signals, offering covert operation and reduced electromagnetic interference compared to active radar systems that emit and analyze reflected signals.
2. What is the maximum simultaneous target tracking capacity of the TYZF-308?
The system can simultaneously track up to 20 distinct targets within its operational range, with prioritization algorithms managing threat response sequences based on proximity and trajectory analysis.
3. How does the system differentiate between authorized and unauthorized drones?
The TYZF-308 employs a whitelist database of authorized RF signatures, combined with flight path analysis and integration with air traffic management systems to distinguish legitimate operations from potential threats.
4. What are the power consumption requirements during continuous operation?
Average power consumption ranges from 800W during passive monitoring to 2.5kW during active jamming operations, with intelligent power management optimizing energy efficiency based on threat levels.
5. Can the system operate effectively in adverse weather conditions?
The IP67-rated components ensure operational continuity in rain, snow, and dust conditions, with de-icing capabilities and thermal management systems maintaining performance across the -20°C to +50°C temperature range.
6. What is the typical deployment time for a temporary installation?
Experienced teams can achieve operational readiness within 4-6 hours for temporary deployments, including site survey, equipment positioning, calibration, and system verification procedures.
7. How does navigation spoofing ensure safe drone landing?
The system generates synthetic GNSS signals that gradually guide the target drone to a predetermined safe landing zone, maintaining stable flight attitudes while overriding operator control inputs.
8. What cybersecurity measures protect the system from compromise?
Multi-layer security includes encrypted command channels, air-gapped operational networks, regular firmware verification, and intrusion detection systems monitoring all network interfaces.
9. Can the system integrate with existing security infrastructure?
The TYZF-308 supports standard protocols including ONVIF, REST APIs, and SIEM integration, enabling seamless incorporation into existing security management platforms and automated response systems.
10. What training is required for system operators?
Comprehensive operator certification requires 40 hours of initial training covering system theory, operational procedures, maintenance protocols, and legal compliance, with annual 8-hour recertification requirements.
11. How does the system minimize interference with legitimate communications?
Advanced spectral filtering and directional antenna arrays confine jamming signals to specific targets, while frequency agility and power control algorithms prevent disruption of adjacent spectrum users.
12. What are the data retention and privacy policies for detected targets?
The system adheres to configurable data retention policies, typically maintaining detection logs for 90 days with automatic anonymization of trajectory data, ensuring compliance with privacy regulations while supporting forensic analysis requirements.
